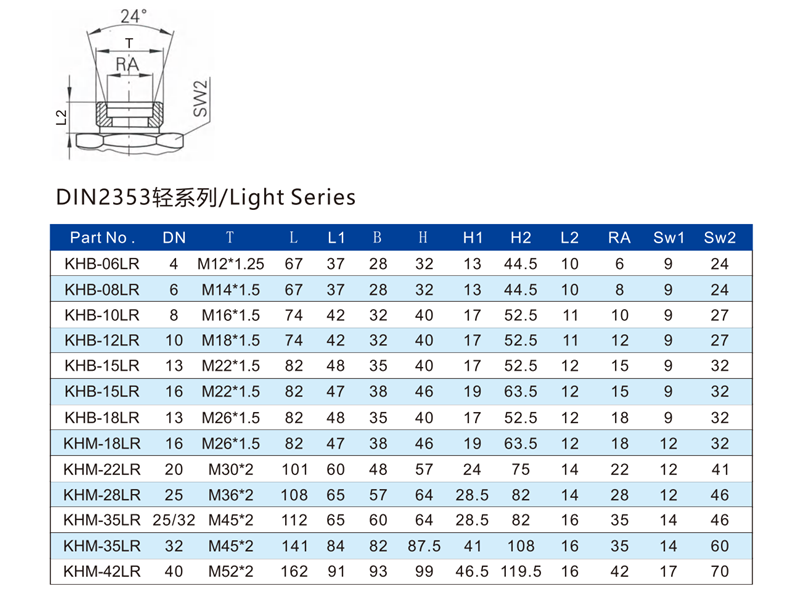

KHB3K-MALE-LR DIN 2353 light series metric mall ball valve 3 WAY

Metric DIN Tee High Pressure Ball Valve with block body designed for use as three-way selectors for hydraulic applications.

Application

Tee high pressure ball valves also known as Three-way ball valves are suitable for the following application:

1. Switch flow between two different sources
2. Combine the flow from two different sources
3. Alternate flow between two different destinations
4. Divert flow coming from one source to another destination
5. Split flow coming from one source between two outgoing destinations

Feature

1. T-pattern flow balls that take two inlet flows and combine them to flow out through one common outlet port. Depending on process requirements, the reverse is also possible.
2. 180-degree balls.
3. able to act like L-pattern flow valves and divert flow from one outlet port to the other.
4. change flow paths with a quarter turn of their handle.

General Information

High Pressure ball valve are fittings that feature a spherical disk with a hole through the middle as their shut-off element. . They have proven their worth in many applications as very reliable and compact shut-off valves. Various types such as 2-way, 3-and 4-way ball valves in conjunction with various spherical bore sizes are available. They can combine depending on the application and use. Ball valves provide fast and precise switching due to their simple structure.

Our diverse range of Valves provides you with the ultimate solution to control the flow and pressure within a system or process. They are essential components of a piping system. They regulate, control, or direct the flow of a fluid by opening, closing, or partially obstructing fluid flow. Our exclusive valves include a variety of gate, ball, and check valves as well as flow control valves to fulfill your requirements. Moreover, we can supply valves in a wide range of materials.
