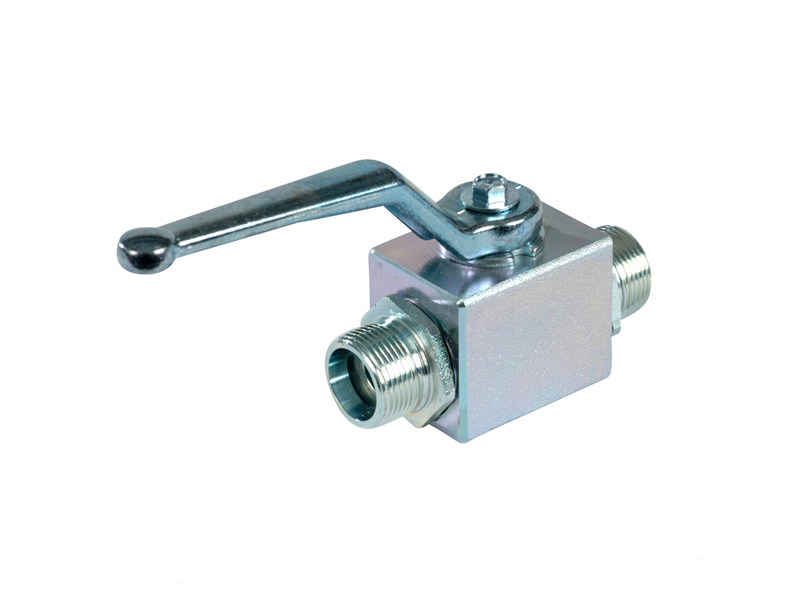

KHB-MALE-LR DIN 2353 light series metric mall ball valve

Male High Pressure Ball valve is perfect for quick response, precise control, as well as reliable back-flow prevention in hydraulic and pneumatic systems. Its design ensures a positive, leak-free seal and automatically compensates for any seat wear or misalignment.

Application

Two-Way high-pressure valve with block body and male thread is particularly designed for use as on/off devices for hydraulic and pneumatic applications. Moreover, they are perfectly ideal for application with high operating pressure.

Features

1. Full bore valves provide an unrestricted flow path for negligible pressure drop.
2. Floating ball on pre-compressed seals minimizes wear and provides an excellent seal at positive and negative pressures.
3. Operating temperature range: -20°C (-4°F) to 100°C (212°F).
4. Open to close in 1/4 turn (90°).
5. Offset handles are incorporated to provide clearance for the operator’s hands.

General Information

High Pressure ball valves are fittings that feature a spherical disk with a hole through the middle as their shut-off element. . They have proven their worth in many applications as very reliable and compact shut-off valves. Various types such as 2-way, 3-and 4-way ball valves in conjunction with various spherical bore sizes are available. They can combine depending on the application and use. Ball valves provide fast and precise switching due to their simple structure.

Our diverse range of Valves provides you with the ultimate solution to control the flow and pressure within a system or process. They are essential components of a piping system. They regulate, control, or direct the flow of a fluid by opening, closing, or partially obstructing fluid flow. Our exclusive valves include a variety of gate, ball, and check valves as well as flow control valves to fulfill your requirements. Moreover, we can supply valves in a wide range of materials.
