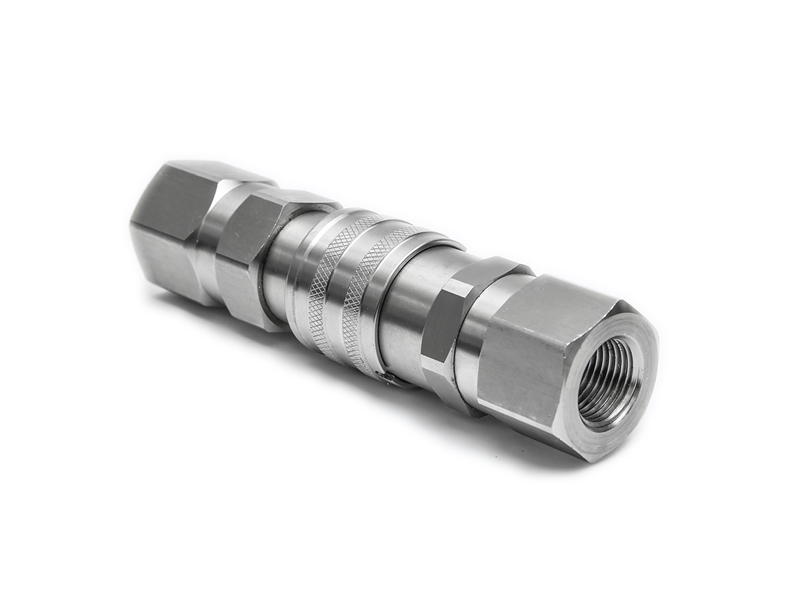

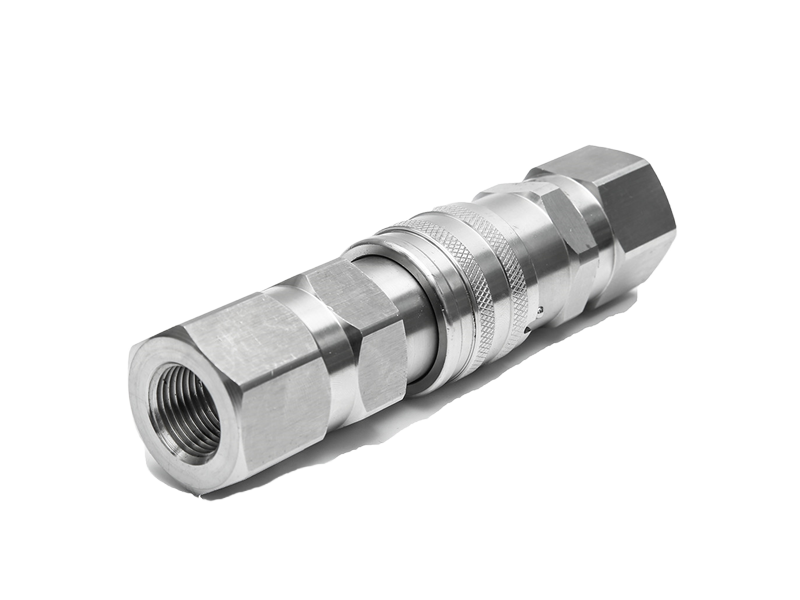

H307 ISO16028 H307 FHH4 type bsp hydraulic quick coupling complete set

H307 ISO16028 H307 FHH4 type bsp hydraulic quick coupling complete set

1. The H307 Series flat face type hydraulic quick couplings are used for quick change of hydraulic tools in construction , railway maintenance and mining industries. The ease of cleaning makes them ideal for use in these types of hostile environments.
2. Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground. Sleeve mechanism is designed to help prevent dirt from entering the internal mechanism and thus avoid the faulty operation during connecting or disconnecting.
3.Critical parts are hardened for durability.
4. H307 Series couplings employ flush valving when connecting or disconnecting. This means that the valves are mated together so that only small amounts of fluid would be lost during disconnect -tion or air inclusion during reconnection.
5. H307 Series conforms to ISO16028.
6. Compatible with PARKER FE and FF Series, STUCCHI A8008
Series, AEROQUIP FD89 Series, HANSEN QA29000 Series.
