QUICK OVERVIEW

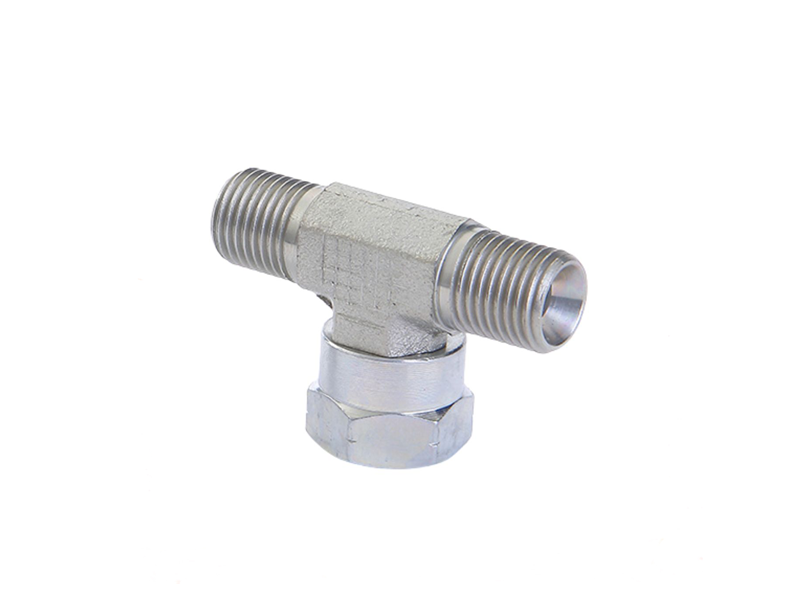

BSP Swivel Nut Branch Tee is used to connect two female BSP fittings to a male connection. It is a British Standard Pipe Parallel thread fitting with 60° cone. Material has been made of high grade carbon steel that provides a perfect durability.

Swivel Nut Branch Tee Features

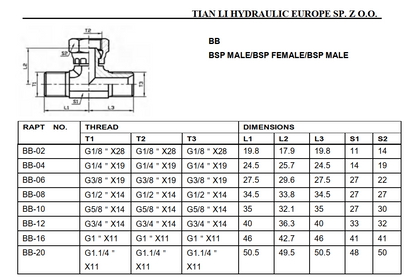

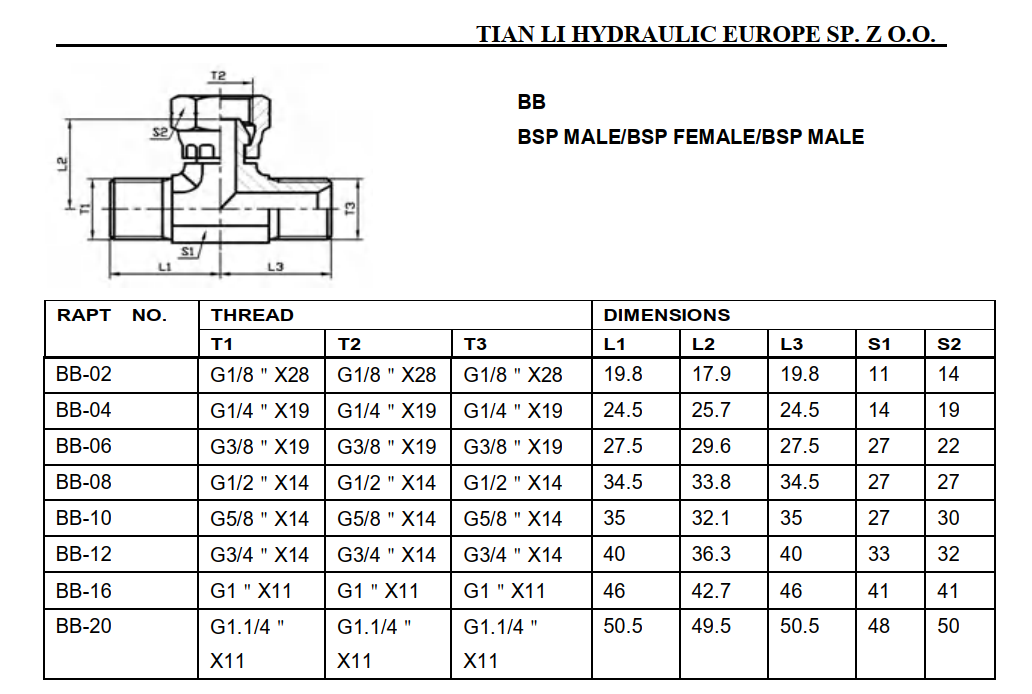

Use BSP Swivel Nut Branch Tee with 60° cone adapter that has a straight thread.  BSP or BSPP is acronym for British Standard Pipe Parallel.  Connect male BSP with the same size to two female BSP connections. Sealing can either metal-to-metal or via a seal or O-ring.  BSP Swivel Nut Branch Tee has British standard G thread.  Assembling this adapter is very easy and makes it possible to do any repair in the system when it’s required.  Reuse of  this adapter is considered safe, since the thread is not a dry seal connection.  Remember to replace the seals or O-rings in case of reuse. Different material and custom sizes of this product are available, for more details, check the Data Sheet above.

Product Selection

Considering amount of system pressure, and function you must choose the proper connector. Also, consider the environment where this product will be used in (e.g. humidity, mechanical pressure, temperature).

Usages of these high pressure fittings are common in all fields of hydraulic.  After choosing the proper adapter size based on the fluid volume, pressure, media, and other properties, adaptor can be installed. Install male BSP using Swivel Nut Branch Tee between two female connectors.
