ORFS Cap Description

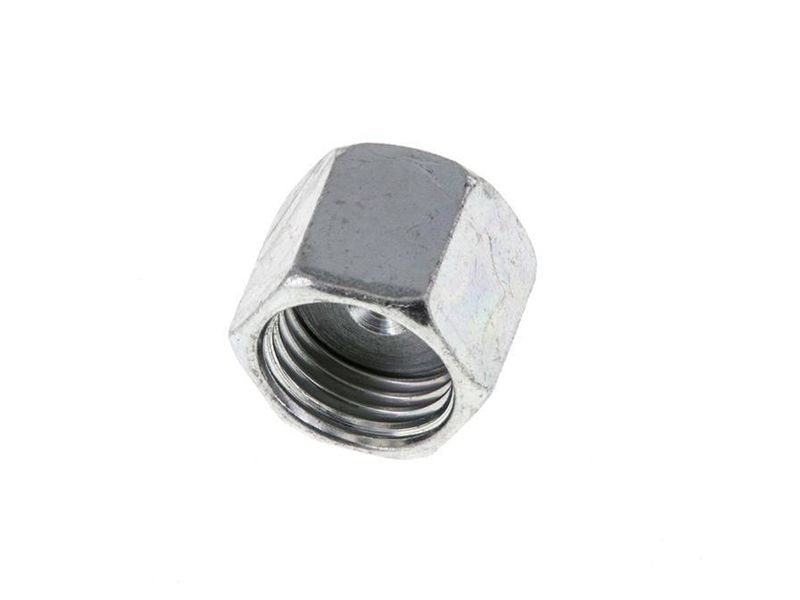

AS the name suggests, Swivel ORFS Cap is an O-Ring Face seal Cap for blinding and blocking. This cap is designed as an inner thread or female thread, and it is suitable for male ORFS adapters. The ORFS cap is screwed to the male connector and tights in place with an appropriate wrench. It seats like a cap on the connector and prevents any possibility of leakage or sudden opening. Important features of ORFS Cap Include high resistance to mechanical and environmental pressure. Moreover, they are highly resistant to the system working pressure caused by the fluid flow pressure.

O-ring face seal adapter fittings use a straight thread and have a machined groove in the face of the male fitting to accept an O ring. This O-ring is compressing against the flat face of the female fitting for a leak-proof connection. ORFS fittings are one of the most recent families of hydraulic adapter fittings and offer excellent leak protection as well as vibration resistance at high pressures.

Selection

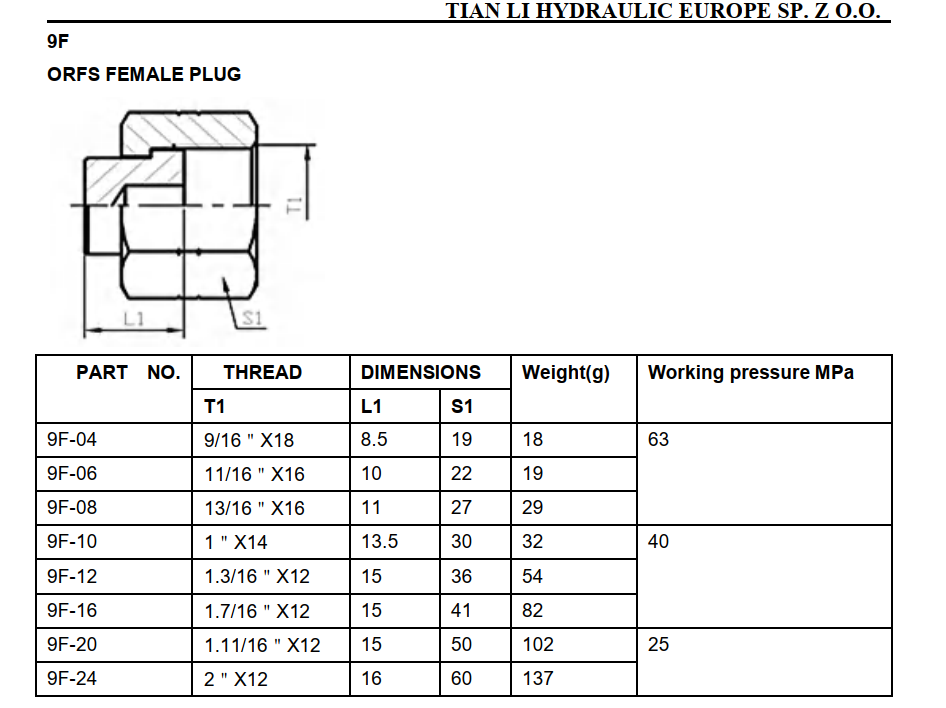

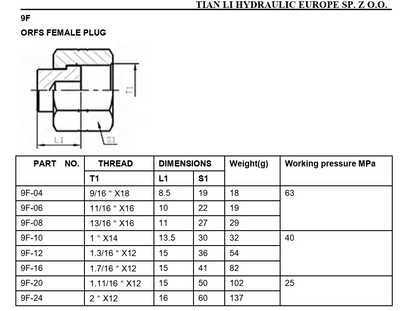

ORFS Caps come in various sizes. You have to pay close attention to the correct size while selecting and installing the caps. Also, note that these caps are female and suitable for male adapters. You can also check our other ORFS Adapters that includes a complete range of different adapters for making any desired connections. Different Sizes for the ORFS plugs are available in the below information table.

Safety Tips
To achieve leak-proof and tight connections it’s crucial to select the correct size adapter. Also, paying close attention to a precise installation, especially in situations where dangerous fluids like Acid, flammable fluids, toxic, and other hazardous fluids are conveying. Never allow the system temperature to go beyond the recommended temperature in the product catalog. Besides, never tighten or loosen the fitting while the system is under pressure. You can also contact the supplier or the manufacturer for consultation.
