Banjo Bolt Metric Description

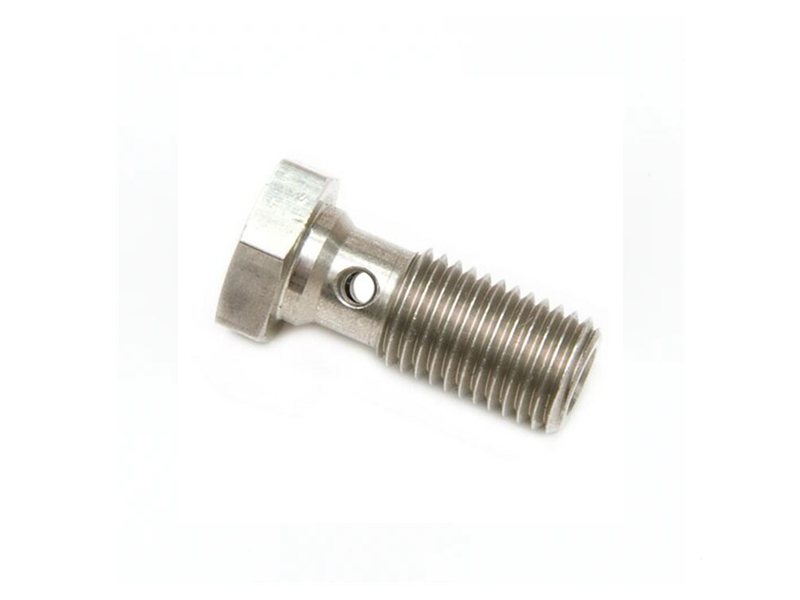

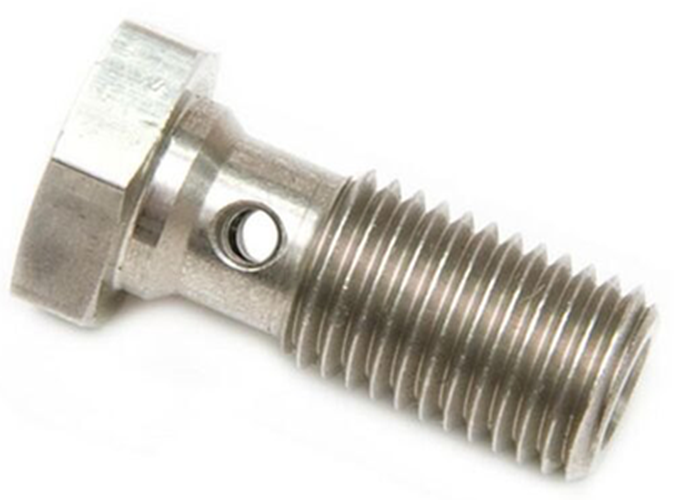

Hydraulic Hose Banjo Bolt Metric fittings are part of the range of fluid connectors. A banjo fitting or internally relieved bolt comprises a perforated hollow bolt and spherical union for fluid transfer. Fittings are also available in one piece straight, male & female, elbows 45° and 90° with swivel nuts and o-ring seal to suit SAE100R1T and R2T wire braided no skive hydraulic hose. Metric hose fittings conform to DIN & SAE standards. DIN specifications controls Germany, but other countries use them as a reference for their connector and port designs. All metric fittings are measured in millimeters. Unless otherwise specified, the size refers to the outside diameter.

Applications

Banjo Bolt Metric can use in conjunction with our Banjo Eye fitting for fuel, air, oil etc applications. Good for high pressure connections in all hydraulic fields. They are suitable across many industries such as :
