QUICK OVERVIEW

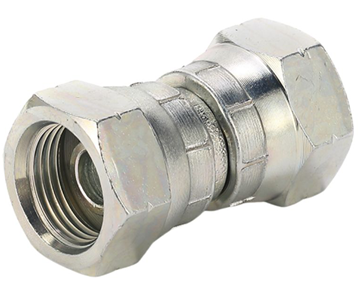

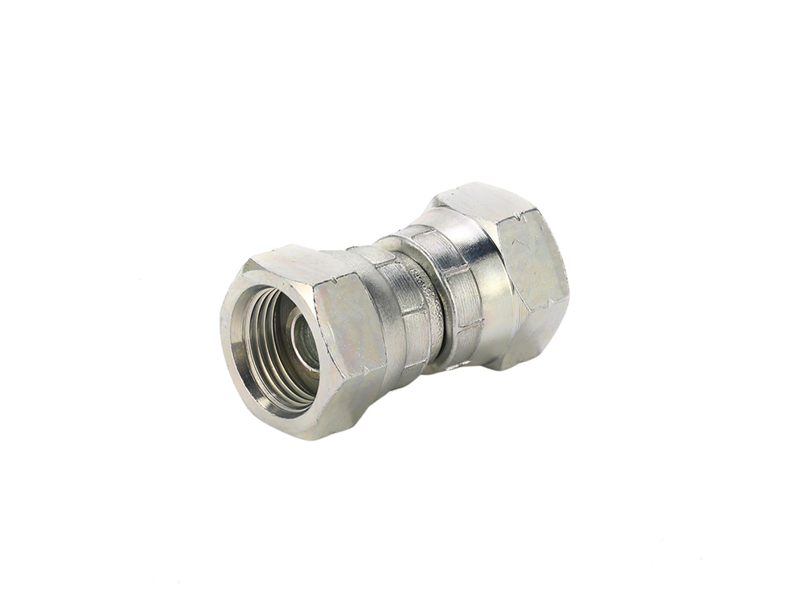

BSP Swivel Nut Union is used to connect two male BSP fittings to each other. It is a British Standard Pipe Parallel thread fitting Swivel Nut Union with 60° cone. Material has been made of high grade carbon steel that provides a perfect durability.

BSP Swivel Nut Union Features

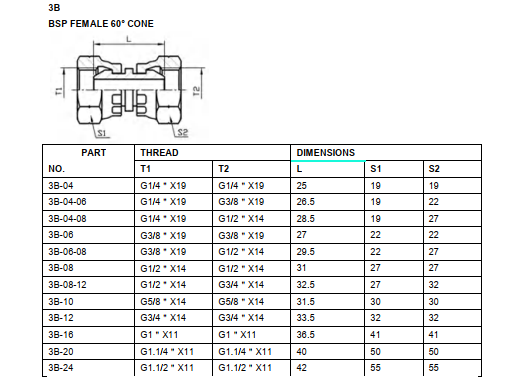

Use BSP Swivel Nut Union with 60° cone adapter that has a straight thread.  BSP or BSPP is acronym for British Standard Pipe Parallel.  Connect male BSP with the same or different sizes to each other using BSP Swivel Nut Union. Sealing can either metal-to-metal or via a seal or O-ring.  BSP Swivel Nut has British standard G thread.  Assembling this adapter is very easy and makes it possible to do any repair in the system when it’s required.  Reuse of this fitting is considered safe, since the thread is not a dry seal connection.  Remember to replace the seals or O-rings in case of reuse. Different material and custom sizes of this product are available, for more details, check the Data Sheet above.

Product Selection

Considering amount of system pressure, and function you must choose the proper connector. Also, consider the environment where this product will be used in (e.g. humidity, mechanical pressure, temperature).  Take into account that RN® fittings are coated with Cr (IV) free Nickle plating.  So they are environmentally clean and safe to use. Furthermore, they have a corrosion resistance to white rust and tested up-to 75 hours. Moreover, BSP Swivel Nut Union is used to connect two male BSP fittings to each other. It is a British Standard Pipe Parallel thread fitting Swivel Nut Union with 60° cone. Material has been made of high grade carbon steel that provides a perfect durability.

Product Usage

Usages of these high pressure fittings are common in all fields of hydraulic.  After choosing the proper adapter size based on the fluid volume, pressure, media, and other properties, adaptor can be installed. Install BSP Swivel Nut Union between two male connectors.
