QUICK OVERVIEW

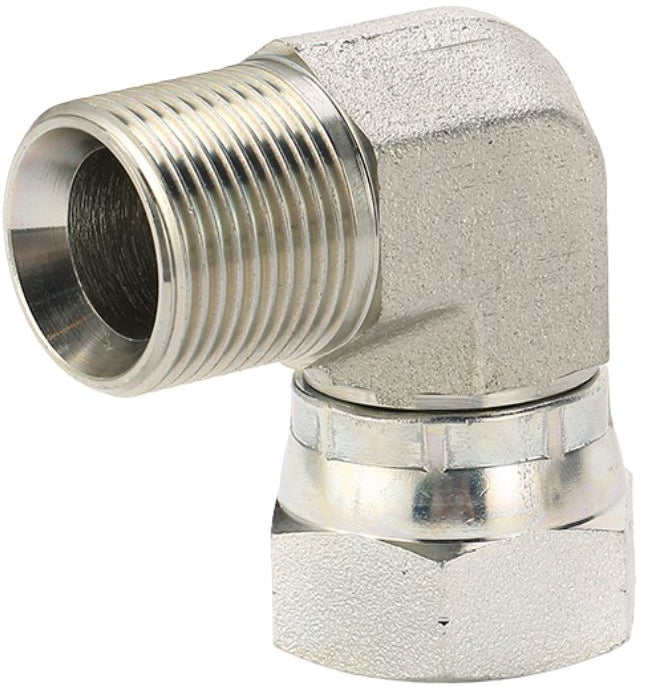

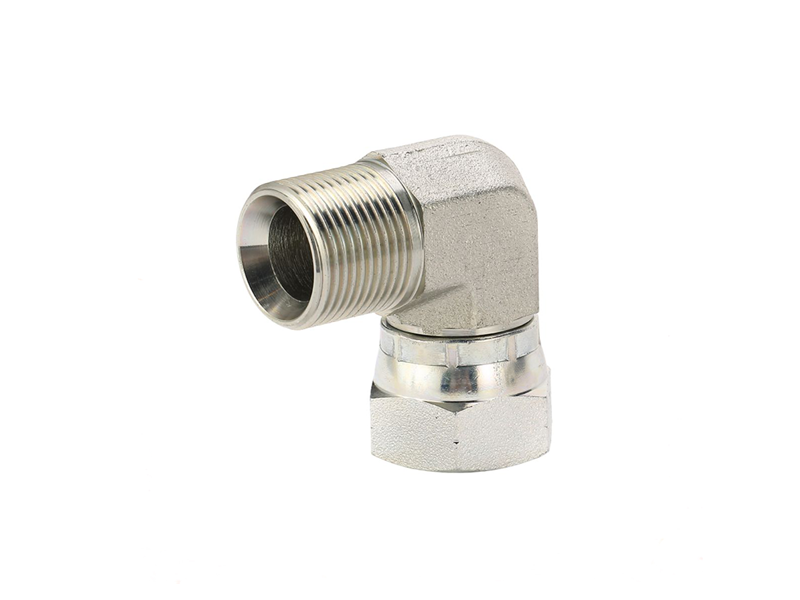

BSP Male Swivel Male Stud is used to connect a male and a female BSP fittings to each other. It is a British Standard Pipe Parallel thread fitting Swivel Male Stud with 60° cone. Material has been made of high grade carbon steel that provides a perfect durability.

Swivel Male Stud Features

Use BSP Swivel Male Stud with 60° cone adapter that has a straight thread.  BSP or BSPP is acronym for British Standard Pipe Parallel.  Connect male and female BSP with the same or different sizes to each other using BSP Swivel Male Stud. Sealing can either metal-to-metal or via a seal or O-ring.  BSP Swivel Male Stud has British standard G thread.  Assembling this adapter is very easy and makes it possible to do any repair in the system when it’s required.  Reuse of this fitting is considered safe, since the thread is not a dry seal connection.  Remember to replace the seals or O-rings in case of reuse. Different material and custom sizes of this product are available, for more details, check the Data Sheet above.

Product Selection

Considering amount of system pressure, and function you must choose the proper connector. Also, consider the environment where this product will be used in (e.g. humidity, mechanical pressure, temperature).  Take into account that RN® fittings are coated with Cr (IV) free Nickle plating.  So they are environmentally clean and safe to use. Furthermore, they have a corrosion resistance to white rust and tested up-to 75 hours. Furthermore, BSP Male Swivel Male Stud is used to connect a male and a female BSP fittings to each other. It is a British Standard Pipe Parallel thread fitting Swivel Male Stud with 60° cone. Material has been made of high grade carbon steel that provides a perfect durability.
