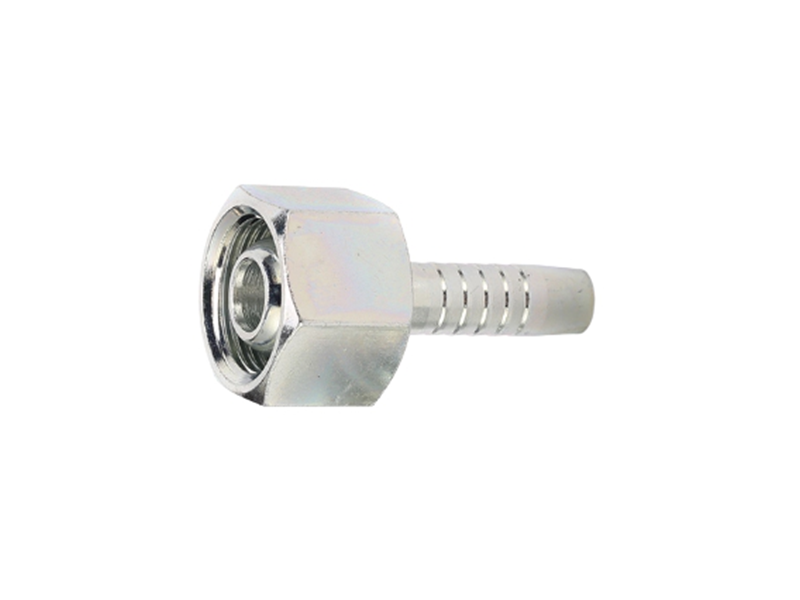

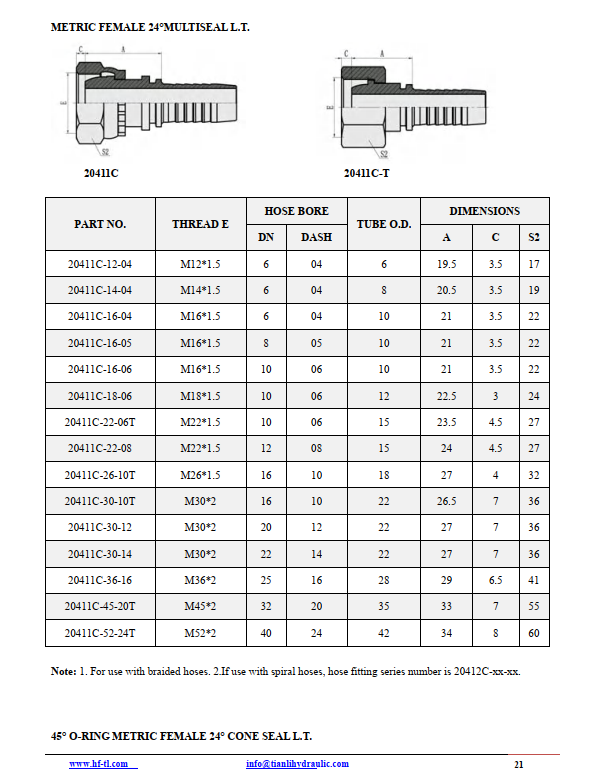

20411C Metric female 24° cone multiseal L.T stright

20411C Metric female 24° cone multiseal L.T stright

Metric hydraulic fittings are part of the hydraulic fittings range. They are suitable for high-pressure connections in all areas of hydraulics.

Description of metric DIN hydraulic connectors

Metric DIN hydraulic fittings are part of the hydraulic fittings range. Metric hose fittings comply with DIN and SAE standards. DIN stands for Deutsches Institut für Normung, which means German Institute for Standardization. All metric fittings are measured in millimeters. Unless otherwise specified, size refers to outside diameter. DIN specifications are controlled by Germany, but other countries use them as a reference for their connector and port designs. DIN 2353 fittings are most commonly used in industrial, oil and gas and construction equipment applications in hydraulic and pneumatic applications.

Applications

Hydraulic hose fittings connect hoses to pumps, valves, cylinders, and other components used throughout a hydraulic system. These fittings secure connections help contain and direct the flow of hydraulic fluid to where required while preventing leaks and safely maintaining pressure. DIN Metric hydraulic fittings are suitable for high-pressure connections in all hydraulic fields. They are useful across many industries such as:

1. Industrial Hydraulics;
2. Mobile Hydraulics;
3. Marine Hydraulics;
4. Mining Industry;
5. Also general light Industry;

Fittings are also available in one piece straight, male & female, elbows 45° and 90° with swivel nuts and o-ring seal.
