QUICK OVERVIEW

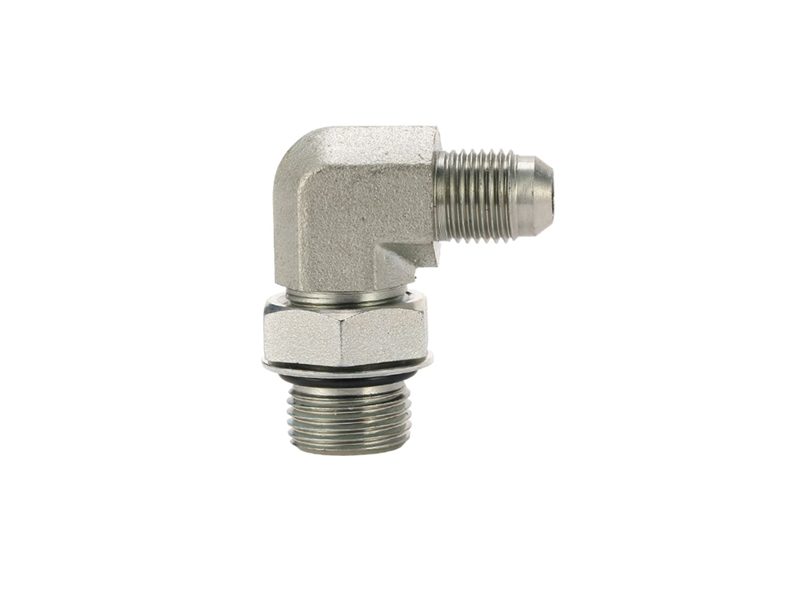

JIC BSP Adjustable Elbow Adapter is a JIC conversion adapter to BSP adapter. Both connector ends are male threads, designed as 90 degree elbow, and mates with female connector.

JIC BSP Adjustable Elbow Adapter Description

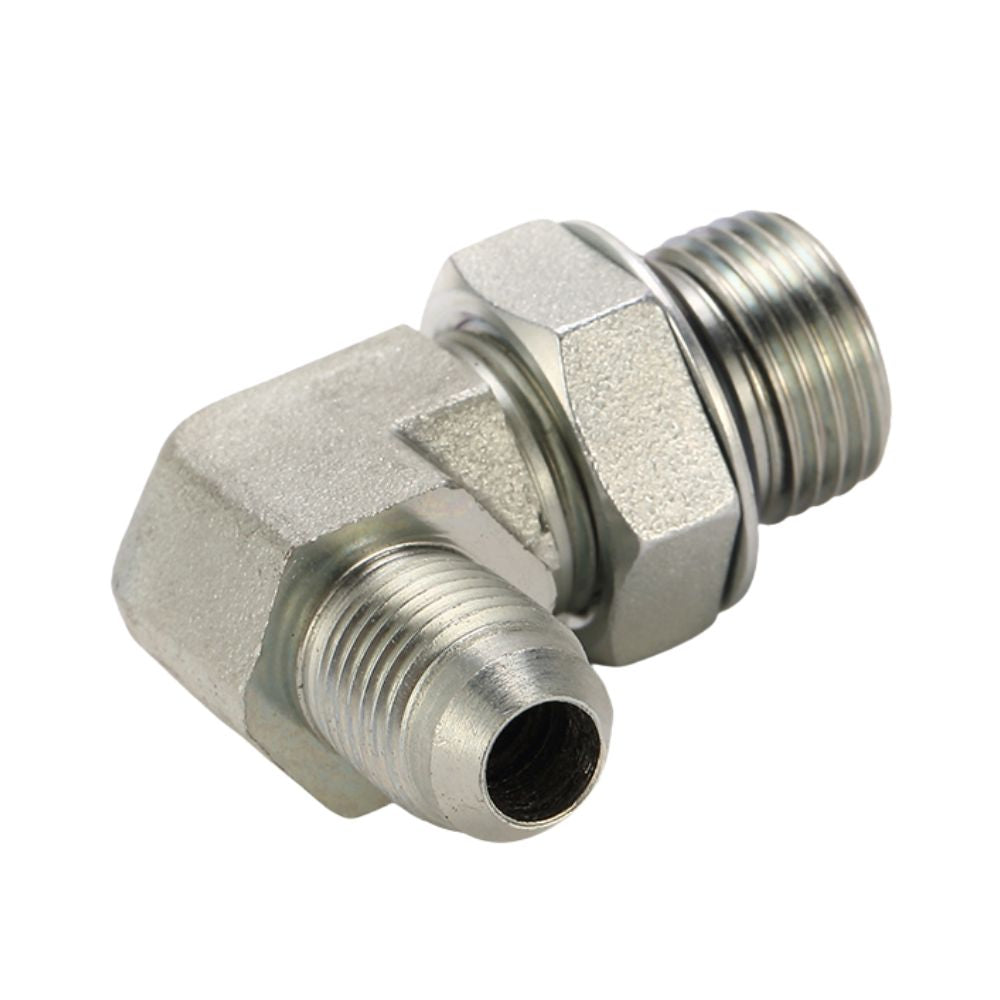

JIC BSP Adjustable Elbow Adapter is a JIC conversion adapter to BSP adapter. Both connector ends are male threads, designed as 90 degree elbow, and mates with female connector. Also, the adapter is provided with control nut in the BSP end.

The Society of Automotive Engineers (SAE) specifies a 74° angle flare or seat to use with high-pressure hydraulic tubing. These fittings are commonly refer to as JIC couplings that are an acronym for Joint Industry Council. They are the most popular as well as useful hydraulic adapters across North America and Europe.

BSP standard stands for British Standard Pipe. Generally, the BSP thread standards divide into two types: BSPP that stands for British Standard Pipe Parallel thread, and BSPT that stands for British Standard Pipe Taper thread. JIC BSP Adjustable Elbow Adapter is classified as the first type. Most of the countries use BSP thread fittings in the irrigation systems. Moreover, these types of fitting are useful across other industries such as mining, mobile systems, and marine.

Selection

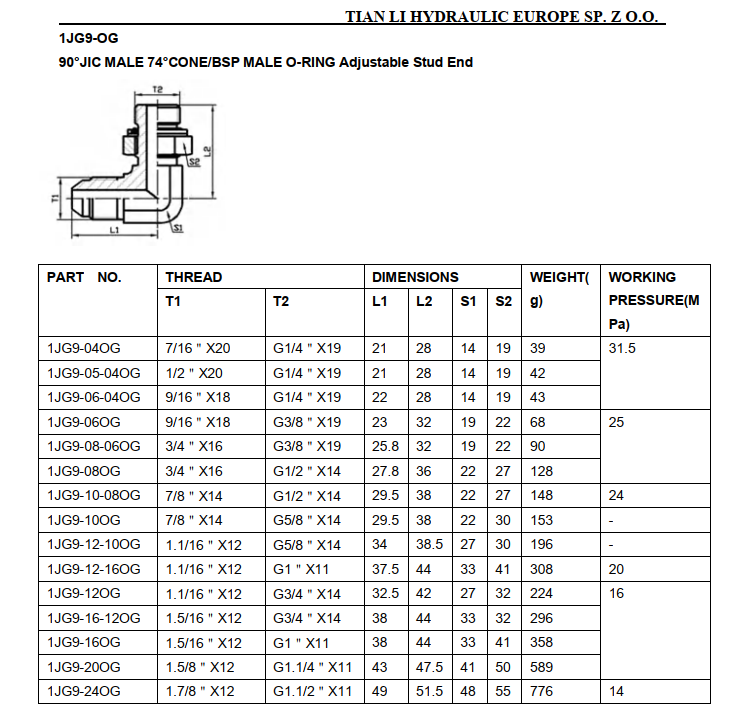

JIC BSP Adjustable Elbow Adapter comes in various sizes. Pay close attention to the correct size while selecting and installing the connectors. You can also check our other JIC Adapters  that connect various hose fittings with different standards together. Different Sizes for this adapter are available in the above information table.

Product Usage

Usages of these high-pressure fittings are common in all fields of hydraulic. After choosing the proper adapter size based on the fluid volume, pressure, media, and other properties, install the adapter. For a perfect leak-proof connection, you should choose the adapter size carefully. Moreover, you can contact the supplier or the manufacturer for consultation.
