1J JIC male 74° cone adapter

1J JIC male 74° cone adapter

QUICK OVERVIEW

The Society of Automotive Engineers (SAE) specifies a 74° angle flare or seat be used with high pressure hydraulic tubing. These are commonly called JIC couplings. The JIC 74° flare male will mate with a JIC female only. The JIC male has straight threads and a 37° flare seat. The seal is made on the 74° flare seat.

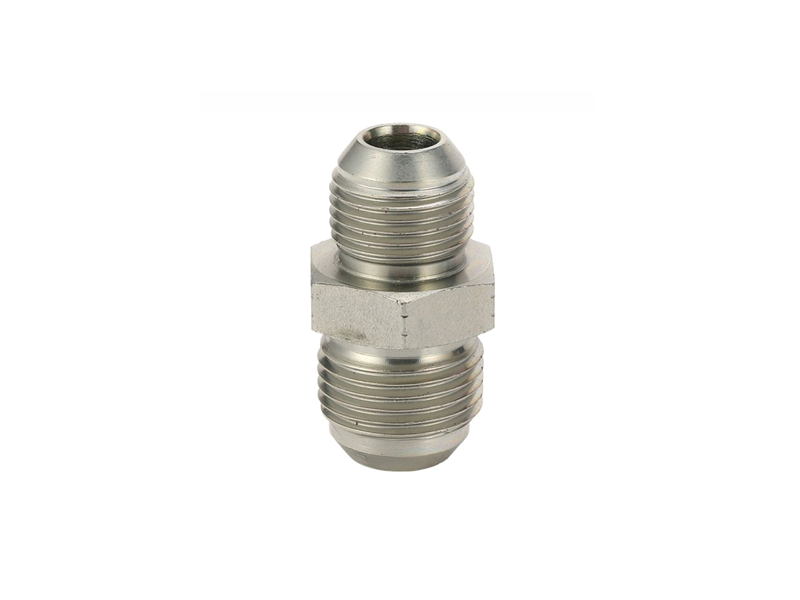

JIC Male Connector Description

JIC Male Connector is part of a fluid connector range. Both connector ends are male threads and mates with a JIC female connector. The adapter is conforming to the JIC standards. The Society of Automotive Engineers (SAE) specifies a 74° angle flare or seat to use with high-pressure hydraulic tubing. These fittings are commonly called as JIC couplings, JIC is an acronym for Joint Industry Council. The JIC 74° flare male will only mates with a JIC female. Besides, it has straight threads and a 74° flare seat. The seal is made on the 74° flare seat. They are the most popular as well as useful hydraulic adapters across North America and Europe.

JIC Male Connector is suitable for connecting two hoses with female connectors. The Best features of JIC Connectors are that they are highly resistant to various mechanical and environmental pressures. Also resistant to the inside working pressure of the system, which mainly creates by fluid flow pressure.

Selection

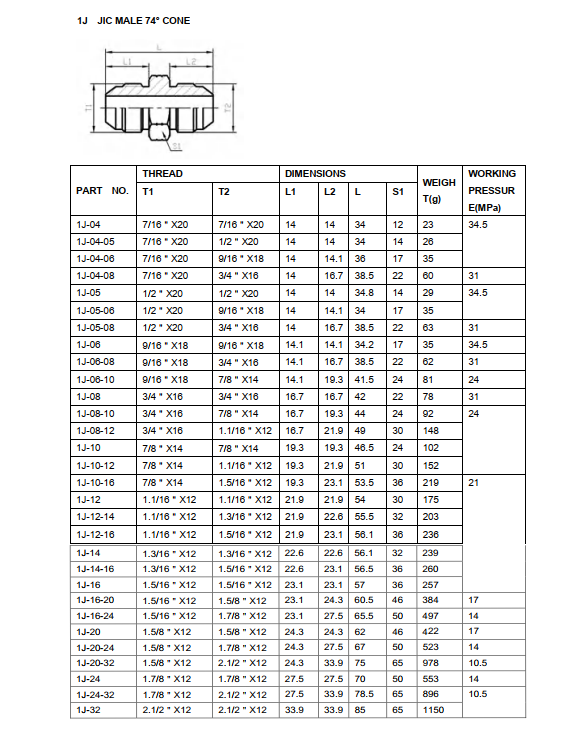

JIC Male Connector comes in various sizes. Pay close attention to the correct size while selecting and installing the connectors. You can also check our other JIC Adapters that connect various hose fittings with different standards together. Different Sizes for this adapter are available in the above information table.

Product Usage

Usages of these high-pressure fittings are common in all fields of hydraulic. After choosing the proper adapter size based on the fluid volume, pressure, media, and other properties, the adapter can be installed. For a perfect leak-proof connection, the adapter size must be chosen carefully. Moreover, you can contact the supplier or the manufacturer for consultation.
