1CN Metric 24°L NPT male adapater

1CN Metric 24°L NPT male adapater

QUICK OVERVIEW
DIN to NPT Male Stud Elbow Adapter is categorizing as Metric connections in hydraulic systems. The adapter one side is designed according to DIN Standards and the other side as per NPT specifications.  The thread types are male on both sides.

DIN to NPT Male Stud Elbow Description

DIN to NPT Male Stud Elbow Adapter is categorizing as Metric connections in hydraulic systems. The adapter one side is designed according to DIN Standards and the other side as per NPT specifications.  The thread types are male on both sides. There are different standards for threading such as NPT, BSP, etc. While installing equipment, note that the indentations in each standard are different, and they can’t be used instead of each other. So for using them the pipe’s threads must be compatible with the adapters threading standards.

DIN type ( Deutsches Institut für Normung, translated as the German Institute for Standardization) tube fittings conform to the requirements of ISO 8434-1, DIN 2353, and DIN EN 3850 standards, that ensures interchangeability among leading brands of fittings. DIN 2353 tube fittings are used in a wide variety of fluid power applications, especially in factories, oil & gas, and construction equipment. DIN2353 fittings are the most widely useful bite-type fittings in the world.  They don’t require O-rings or other elastomers to make a leak-tight seal.

Selection

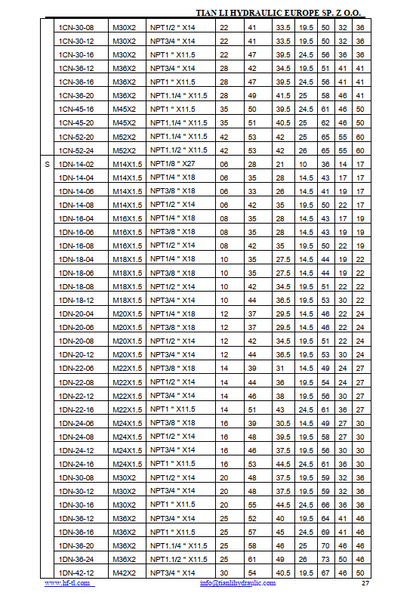

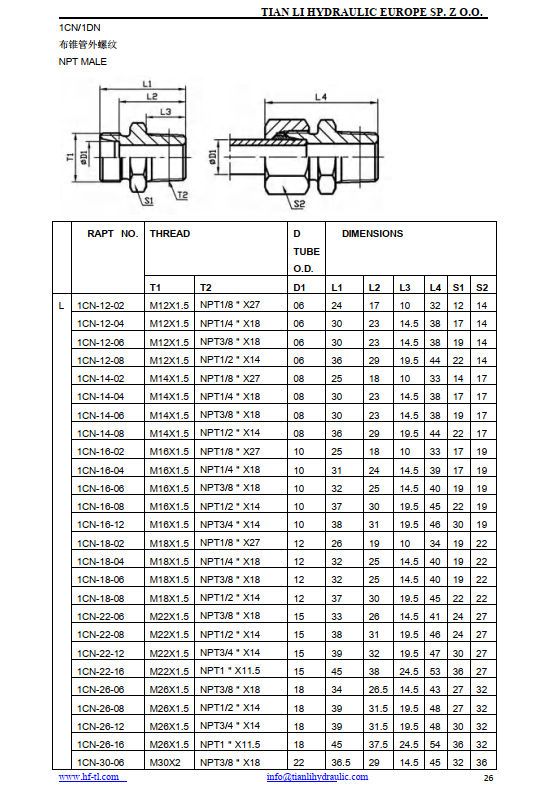

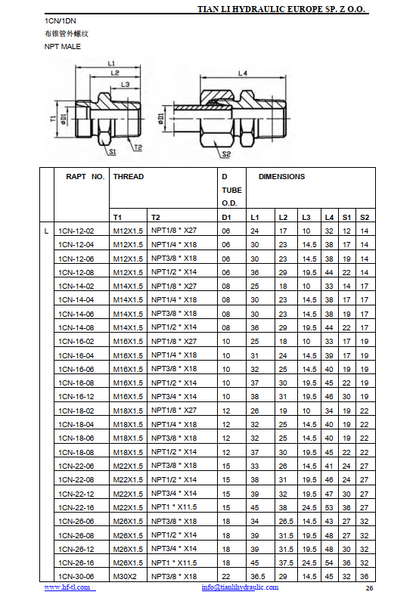

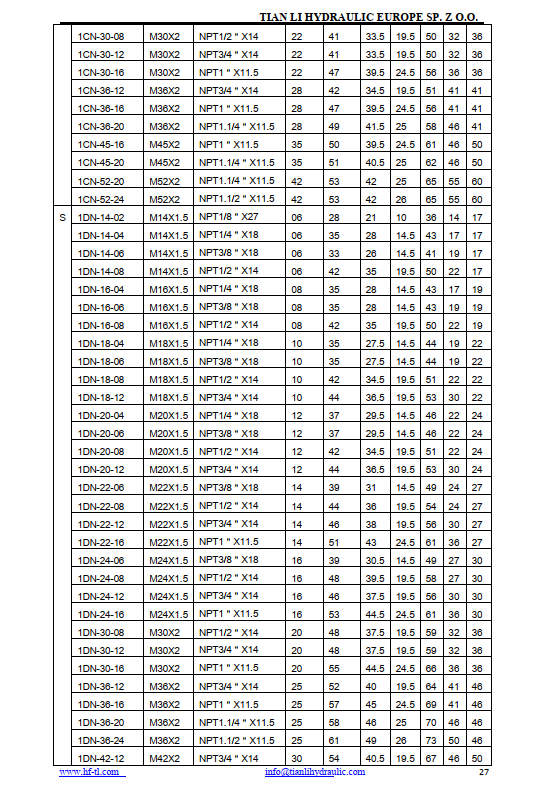

DIN to NPT Male Stud Elbow Adapter comes in various sizes. Pay close attention to the correct size while selecting and installing the connectors. Before choosing the adapter, take the fluid volume, pressure, and other system properties into consideration. Different sizes for this adapter are available in the above information table. You can also check our other DIN 2353 Bite Type Adapters including a wide range with different shapes and sizes for making any desired connections.

Product Usage

First and foremost, the adapter selection should be according to your requirements. After choosing the proper adapter size based on the fluid volume, pressure, media, environmental situations, and other properties, you can install the adapter. Besides, we recommend contacting the supplier or the manufacturer for installation consultation.
