XC Metric male 24° cone Cross Fittings L type

XC Metric male 24° cone Cross Fittings L type

QUICK OVERVIEW

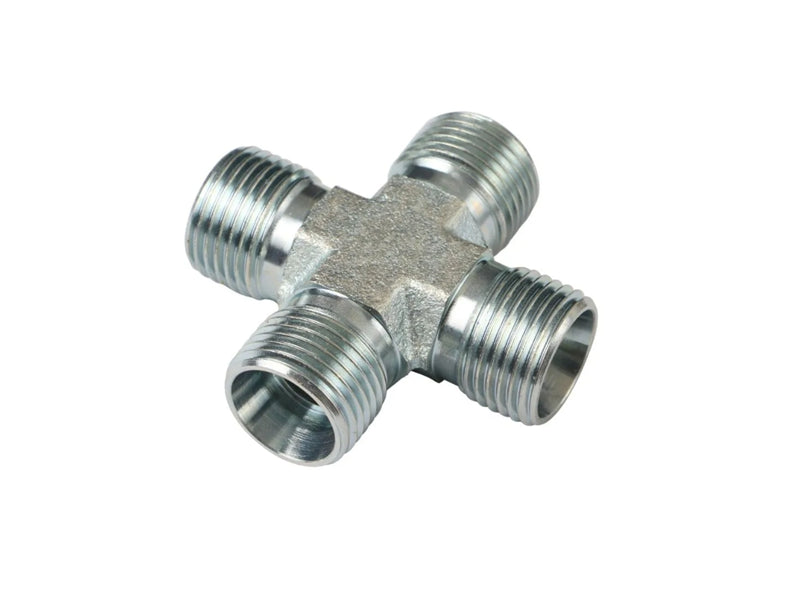

DIN 2353 Union Cross Adapter is categorizing as DIN connections. The Adapter is designed according to DIN specifications. All four sides of the union cross adapter are male thread type. They are extensively useful across multiple applications in hydraulic systems as well as high- pressure fuel supply systems. They are mainly constructed from Carbon steel or Stainless Steel. The product is available in different sizes.

Description
DIN 2353 Union Cross Adapter Description
DIN 2353 Union Cross Adapter is categorizing as DIN connections. The Adapter is designed according to DIN specifications. All four sides of the union cross adapter are male thread type. They are extensively useful across multiple applications in hydraulic systems as well as high- pressure fuel supply systems. They are mainly constructing from Carbon steel or Stainless Steel. The product is available in different sizes.

DIN type ( Deutsches Institut für Normung, translated as the German Institute for Standardization) tube fittings conform to the requirements of ISO 8434-1, DIN 2353, and DIN EN 3850 standards, that ensures interchangeability among leading brands of fittings. DIN 2353 tube fittings are used in a wide variety of fluid power applications, especially in factories, oil & gas, and construction equipment. DIN2353 fittings are the most widely useful bite-type fittings in the world.  Furthermore, they don’t require O-rings or other elastomers to make a leak-tight seal.

Selection

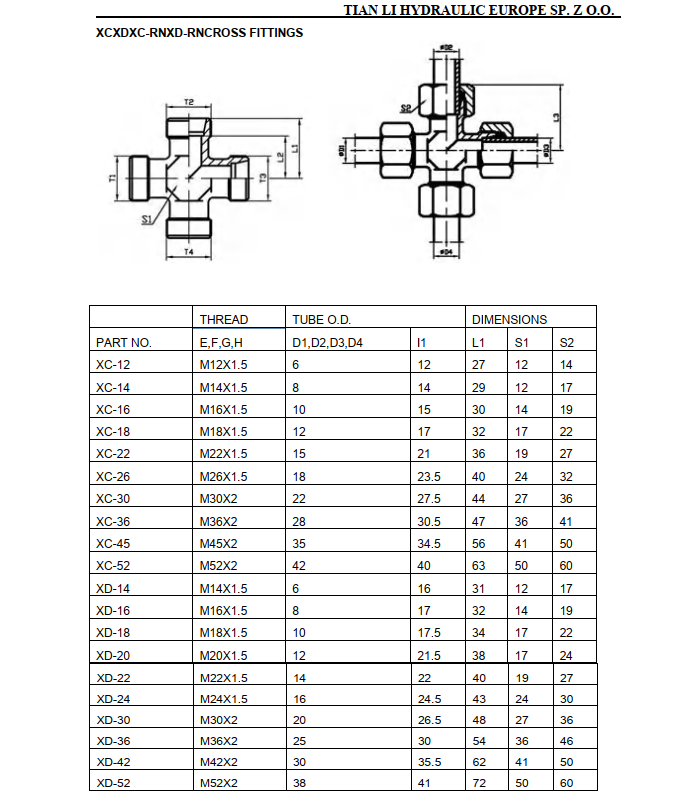

DIN 2353 Union Cross Adapter comes in various sizes. Pay close attention to the correct size while selecting and installing the connectors. Before choosing the adapter, take the fluid volume, pressure, and other system properties into consideration. Different sizes for this adapter are available in the information table. You can also check our other DIN 2353 Bite Type Adapters including a wide range with different shapes and sizes for making any desired connections.

Product Usage
First and foremost, the adapter selection should be according to your requirements. After choosing the proper adapter size based on the fluid volume, pressure, media, environmental situations, and other properties, you can install the adapter. Besides, we recommend contacting the supplier or the manufacturer for installation consultation.
