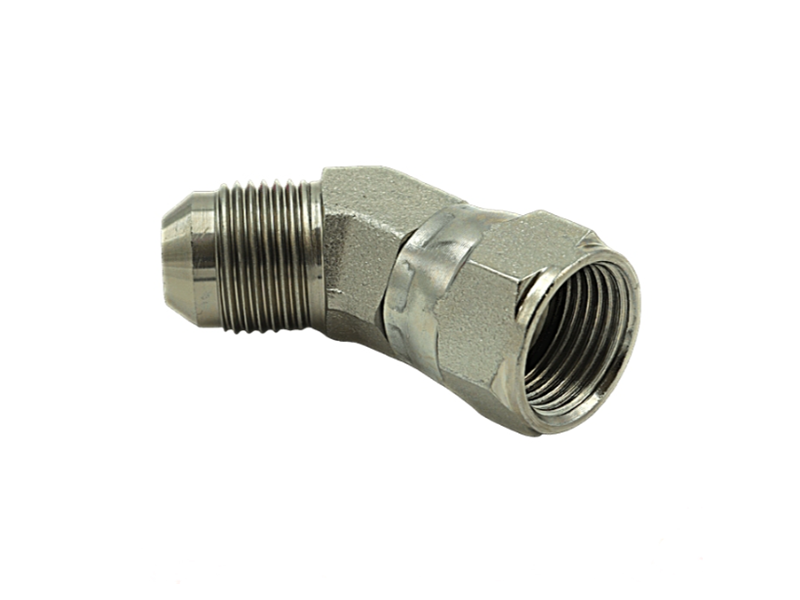

2J4 JIC 74° cone seat male female 45° elbow adapter

2J4 JIC 74° cone seat male female 45° elbow adapter

QUICK OVERVIEW

JIC 45° Swivel Connector is designed with a 45-degree angle and has the ability to rotate that’s why they called swivel adapters. These connectors are suitable to connect two hoses with male and female hose fittings with a 45-degree angle together. Besides, they enable the hose to rotate simply in different directions.

JIC 45° Swivel Connector Description

JIC 45° Swivel Connector is designed with a 45-degree angle and has the ability to rotate that’s why they called swivel adapters. Connector one end is male and the other female thread. It’s notable that the adapter both ends are designed and constructed according to the JIC standards.

The Society of Automotive Engineers (SAE) specifies a 74° angle flare or seat to use with high-pressure hydraulic tubing. These fittings are commonly called as JIC couplings, JIC is an acronym for Joint Industry Council. The JIC 74° flare male will only mates with a JIC female. Besides, it has straight threads and a 74° flare seat. The seal is made on the 74° flare seat. They are the most popular as well as useful hydraulic adapters across North America and Europe.

These connectors are suitable to connect two hoses with male and female hose fittings with a 45-degree angle together. Besides, they enable the hose to rotate simply in different directions. The Best features of JIC 45° Swivel Connectors are that they are highly resistant to various mechanical and environmental pressures. Also resistant to the inside working pressure of the system, which is mainly caused by fluid flow pressure.

Selection

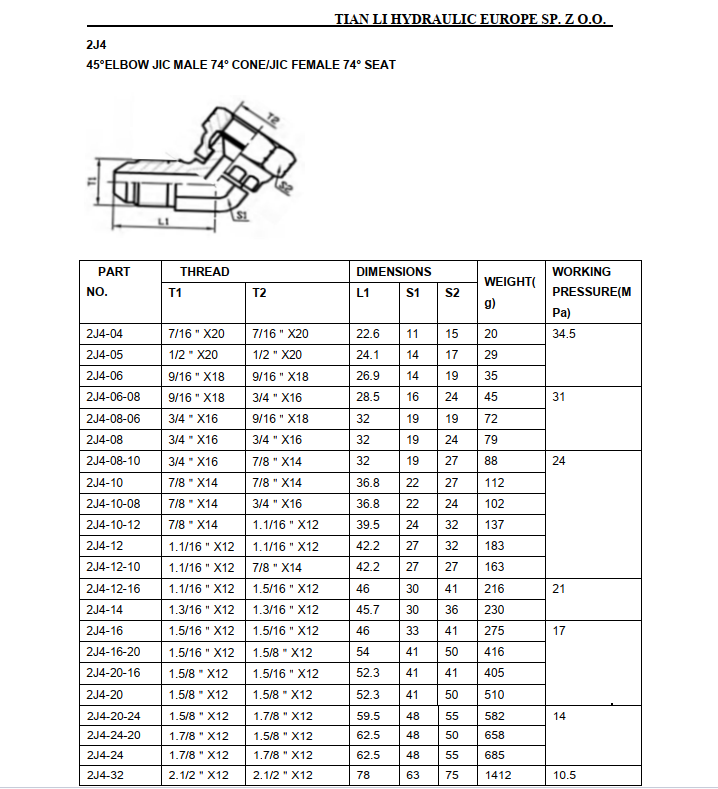

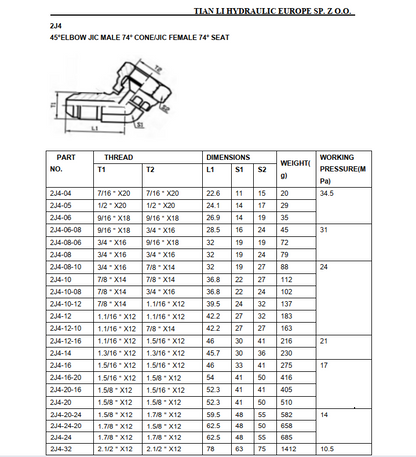

JIC 45° Swivel Connector comes in various sizes. Pay close attention to the correct size while selecting and installing the connectors. You can also check our other JIC adapters that connect various hose fittings with different standards together. Different Sizes for this adapter are available in the above information table.

Product Usage

Usages of these high-pressure fittings are common in all fields of hydraulic. After choosing the proper adapter size based on the fluid volume, pressure, media, and other properties, install the adapter. For a perfect leak-proof connection, you should choose the adapter size carefully. Moreover, you can contact the supplier or the manufacturer for consultation.
