QUICK OVERVIEW

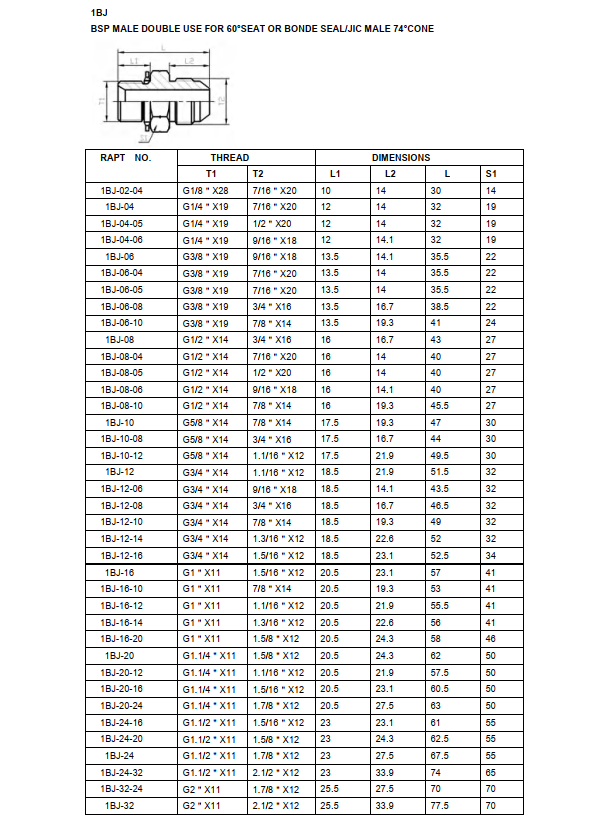

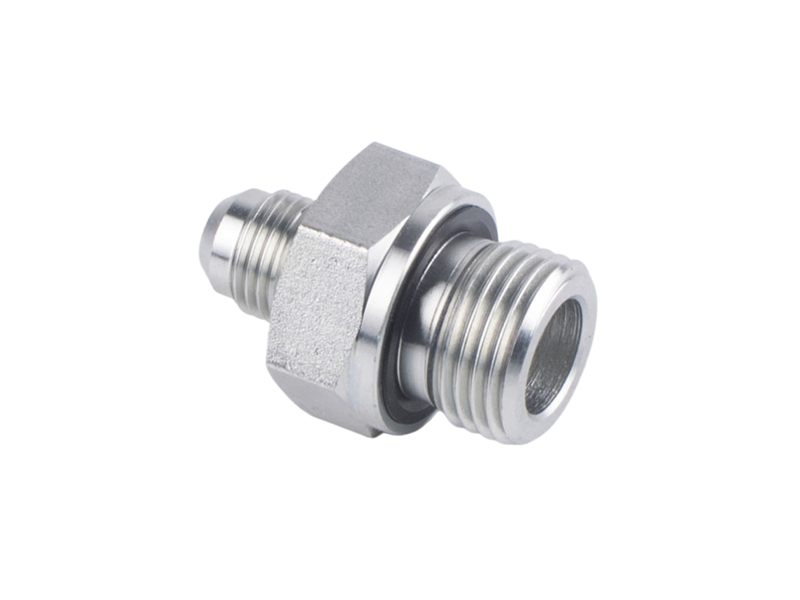

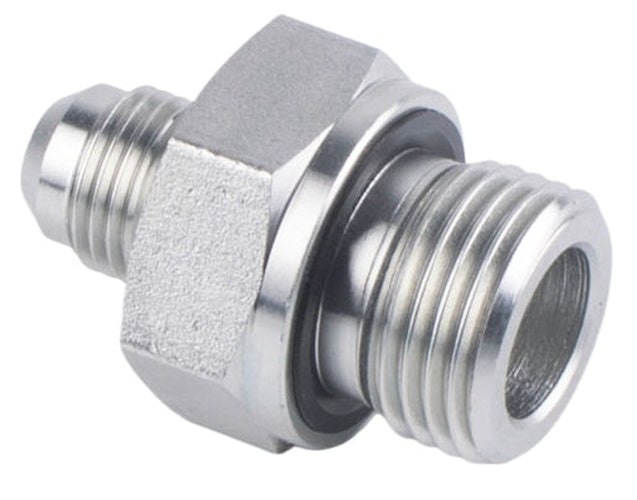

Male Stud Connector JIC is used to connect port thread to another tube fitting or hose connections using this Thread conversion adaptor. It is a British Standard Pipe Parallel with 60° cone to UNF thread adaptor. Material has been made of high grade carbon steel that provides a perfect durability.

Male Stud Connector JIC Features

Use Male Stud Connector JIC to connect port thread to another tube fitting or hose connections.  BSP or BSPP is acronym for British Standard Pipe Parallel. Sealing of BSP can either metal-to-metal or via a seal or O-ring.  During maintenance these Thread conversion adaptor are used to convert BSPP threads from European manufacturer to an American thread – for example, UNF or NPT.  Solve short term problems in the most economical way using Thread conversion adaptors. Male BSP has British standard G thread. Assembling this adapter is very easy and makes it possible to do any repair in the system when it’s required.  Reuse of Male Stud Connector JIC is considered safe, since the thread is not a dry seal connection.  Remember to replace the seals or O-rings in case of reuse.

Product Selection

Considering amount of system pressure, and function you must choose the proper connector. Also, consider the environment where this product will be used in (e.g. humidity, mechanical pressure, temperature).

Product Usage

Usages of these high pressure fittings are common in all fields of hydraulic.  After choosing the proper adapter size based on the fluid volume, pressure, media, and other properties, adaptor can be installed. Install hose to port or hose to hose using this adaptor as a Hose end adaptor.  Assemble easily with this design, where even a less experienced worker can do the job.
