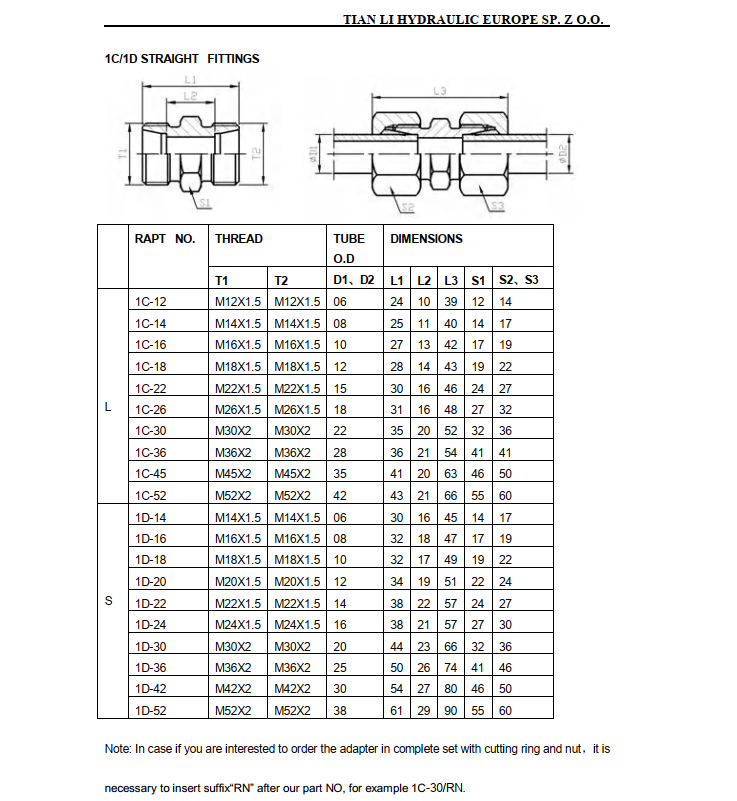

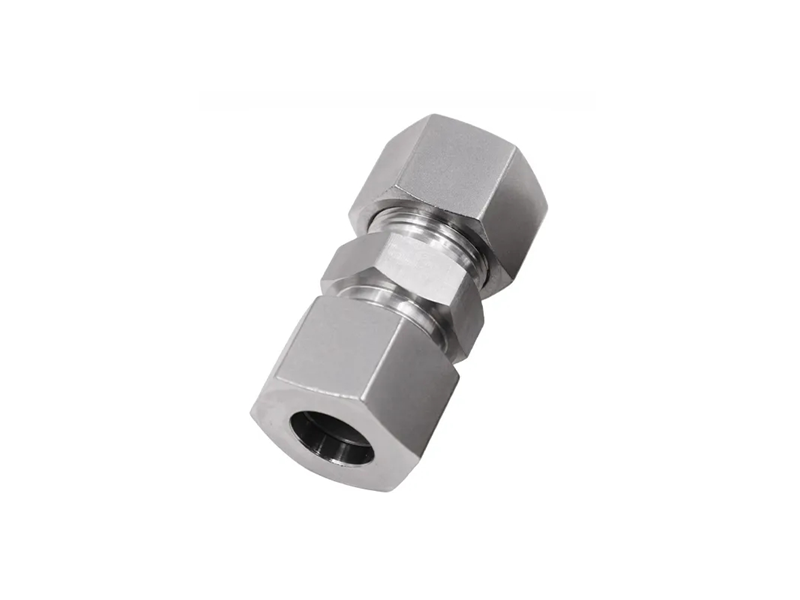

1C RN Metric male 24° cone adapter with nut and sleeves L type

1C RN Metric male 24° cone adapter with nut and sleeves L type

DIN Metric Union Adapter is suitable for connecting two pipes. Also, these adapters are capable of size conversion. The adapter threads are according to the German DIN standard. They are the most popular adapters due to long product life and high corrosion resistance. This product is available in different sizes for different pipes. They have simple installation, and there is no limitation on the number of attachments as well as detachment.

DIN Metric Union Adapter Description
DIN Metric Union Adapter is suitable for connecting two pipes. Also, these adapters are capable of size conversion. The adapter threads are according to the German DIN standard. They are the most popular adapters due to long product life and high corrosion resistance. This product is available in different sizes for different pipes. They have simple installation, and there is no limitation on the number of attachments as well as detachment.

DIN type ( Deutsches Institut für Normung, translated as the German Institute for Standardization) tube fittings conform to the requirements of ISO 8434-1, DIN 2353, and DIN EN 3850 standards, that ensures interchangeability among leading brands of fittings. DIN 2353 tube fittings are used in a wide variety of fluid power applications, especially in factories, oil & gas, and construction equipment. DIN2353 fittings are the most widely useful bite-type fittings in the world, and they don’t require O-rings or other elastomers to make a leak-tight seal.

Selection
Metric Union Adapter comes in various sizes. Pay close attention to the correct size while selecting and installing the connectors. Before choosing the adapter, take the fluid volume, pressure, and other system properties into consideration. Also, be aware of the environmental situation where the adapter is being used. Different sizes for this adapter are available in the above information table. You can also check our other DIN 2353 Bite Type Adapters that come in a wide range with different sizes and shapes for making any desired connection.

Product Usage
First and foremost, the adapter selection should be according to your requirements. After choosing the proper adapter size based on the fluid volume, pressure, media, environmental situations, and other properties, you can install the adapter. Besides, we recommend contacting the supplier or the manufacturer for installation consultation.
